ScanEdgePosition
Overview
In this section, the changes from [ScanEdgePosition] item of FZ3 are mainly described.Features

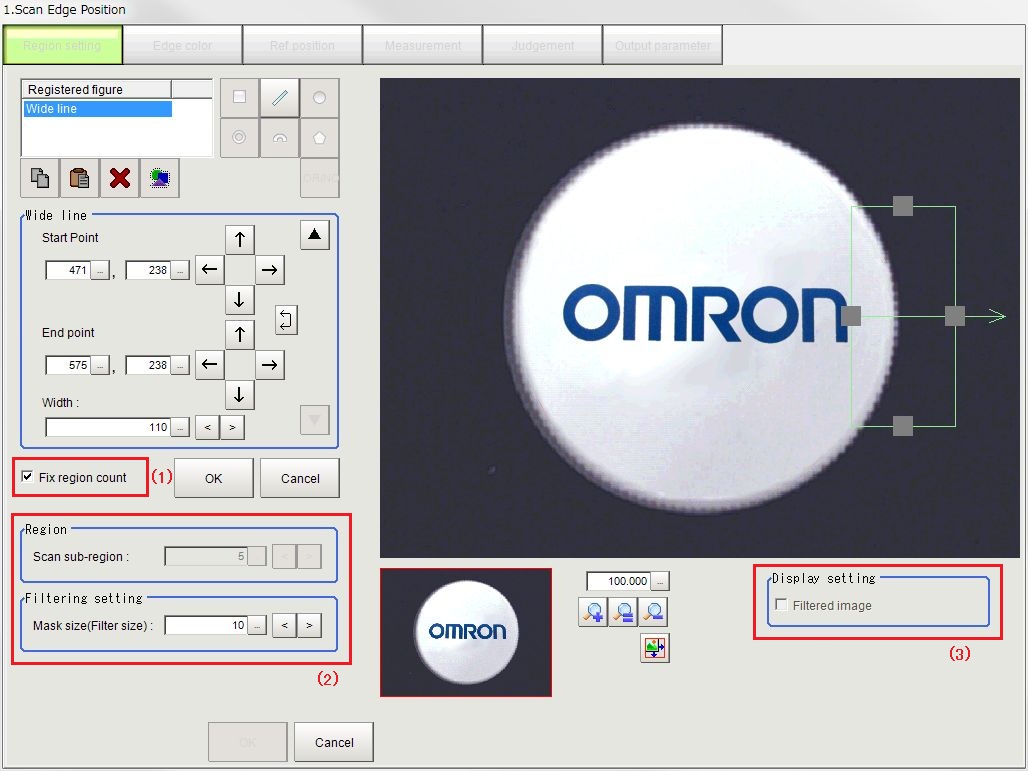

| No. |
Items |
Description |
|---|---|---|
| (1) |
Fix region count |
It's "Fix scan lines" of FZ3. There is no difference of the function. |
| (2) |
Scan sub-region |
It's "Scan lines" of FZ3. There is no difference of the function. |
| Mask size |
It's "Scan width" of FZ3. There is no difference of the function. |
|
| (3) |
Filtered image |
It's new function. When check this, display the image smoothed by Mask size. |
| No. |
Items |
Description |
|---|---|---|
| (4) |
Display potition |
It's "Display area" of FZ3. |
| Sub-region No. |
It's "Display area No." of FZ3. There is no difference of the function. |
Note・The algoritm is unmodified, so the measurement result is same as FZ3.
