Switch the window customized and normal

Overview

Switch the window customized and normal.

Specification of this example

Behavior

When click the "Select Folder" button on the PanDA form, show the dialog box that selected the normal window.

After selected the folder and click the "Change Layout" button, change the normal window.

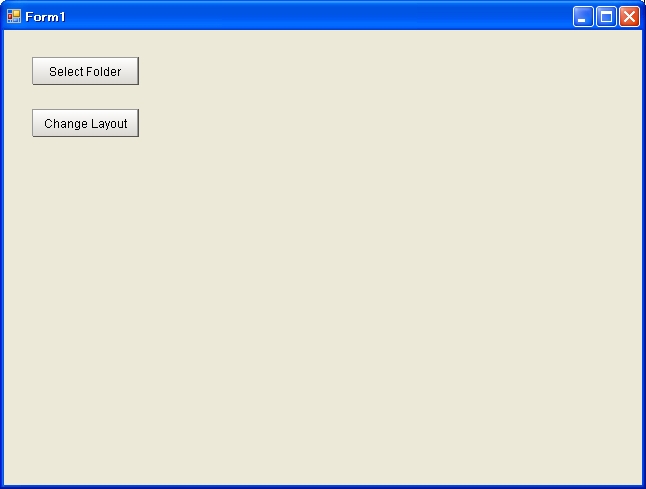

Screenshot

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system, then the demo-tool automatically starts.

3.Click "Start PanDA Form" button in the program, then the PanDA form will start.

4.When click the "Select Folder" button on the PanDA form, show the dialog box that selected the normal window.

5.After selected the folder and click the "Change Layout" button, change the normal window.

How to implement

Process of UI unit

Imports System
Imports System.Windows.Forms
Imports System.IO

Public Class Form1

    Private Sub btnSelectFolder_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSelectFolder.Click
        '(1)
        Dim result As DialogResult = FolderBrowserDialog1.ShowDialog()

        '(2)
        If result = Windows.Forms.DialogResult.OK Then
            Dim filePath As String = FolderBrowserDialog1.SelectedPath
            If System.IO.File.Exists(filePath + "\FZ-CoreRA.exe") = True Then
                btnChangeLayout.Enabled = True
            Else
                btnChangeLayout.Enabled = False
            End If
        End If
    End Sub

    Private Sub btnChangeLayout_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnChangeLayout.Click
        Dim filePath As String = FolderBrowserDialog1.SelectedPath
        '(3)
        Me.Hide()
        Shell(filePath + "\FZ-CoreRA.exe", vbNormalFocus)
        End

    End Sub
End Class

Explanation

(1)Display the dialog to select folder.
(2)If there is "FZ-CoreRA.exe" in the selected folder, enable the "Change Layout" button.
(3)Show the normal window, and then close the PanDA form.

Source codes

Total source codes can be get from

here.
