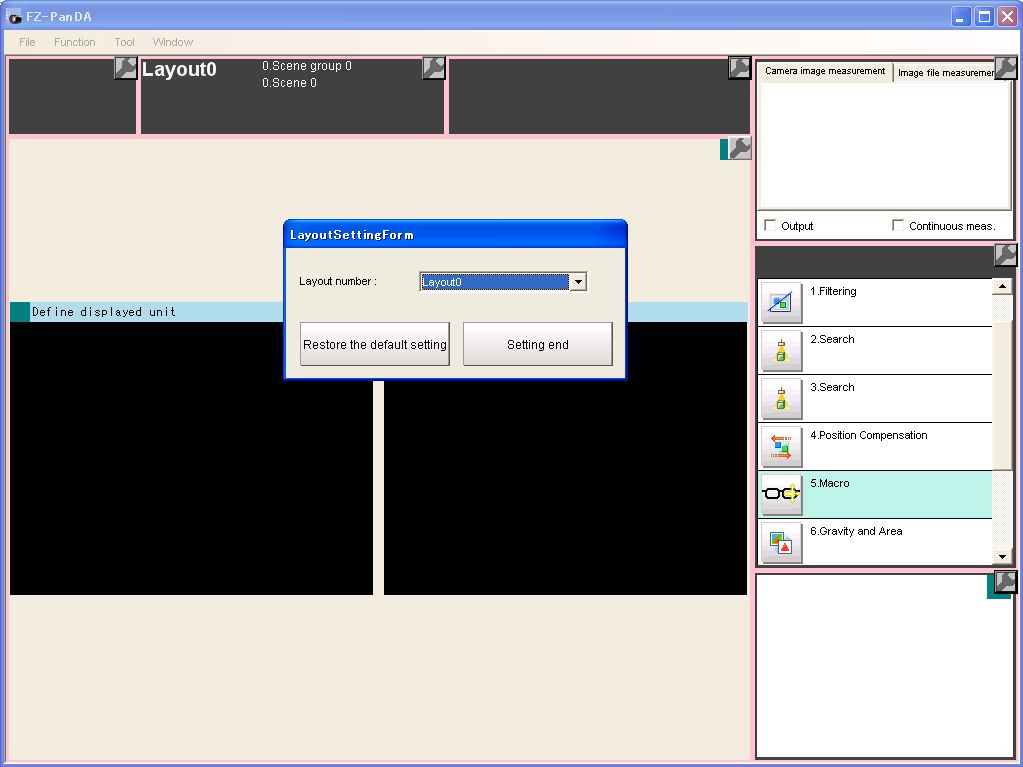

Change screen layout

Selecting "Change Layout" switches the screen to Layout edit mode.

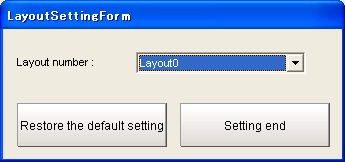

Layout selecting dialog

With this dialog, the layout to edit is selected.

Common operation of windows

• Window position can be changed by dragging and holding inside the window.

• Window size can be changed by dragging and holding the outer frame of the window.

• Pressing the icon shown on right-top corner of the window opens configuration dialog.

Configuration dialog for each window

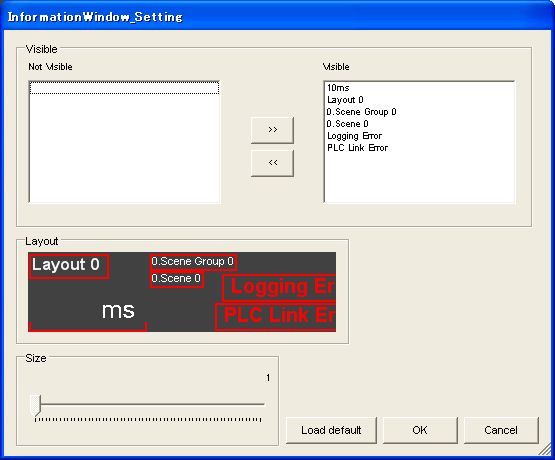

Information Window

Set to show or not to show, position and size for each information.

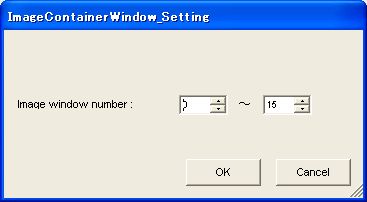

Image Container Window

Set the range of Image Window number to be used in Image Display Window.

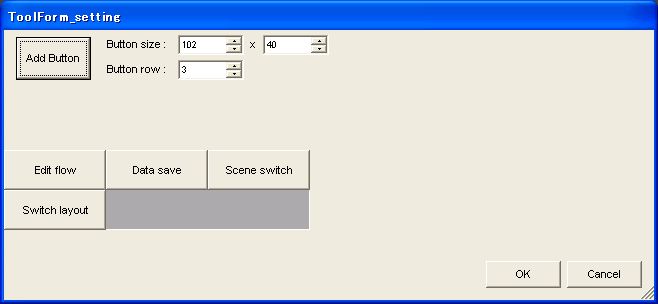

Toolbox window

"Button size" settings define the size of each button in pixels.
"Button number/Column" defines the number of the buttons in one column.
Pressing button on (1) shows this menu.

Button can be deleted, or linked to the operation shown on menu bar.

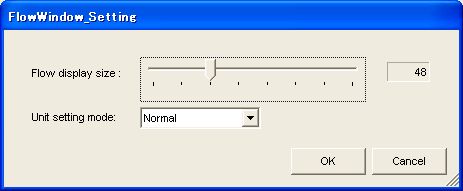

Flow display window

"Flow item size"
This setting changes the size of each item.

"Processing item setting UI"

This item defines type of processing item setting menu, which is shown by pressing processing unit icon.

Standard	Standard setting menu is shown.
Simplified non-stop	Simplified non-stop adjustment menu is shown.
None	No setting menu is shown.

Save layout

The layout configuration is saved after exiting layout edit mode and press [DataSave].
Configuration information is stored in System data, which is saved in system data file.
The layout configuration which is read by system data file is reflected when FJ restart or switch layout.
