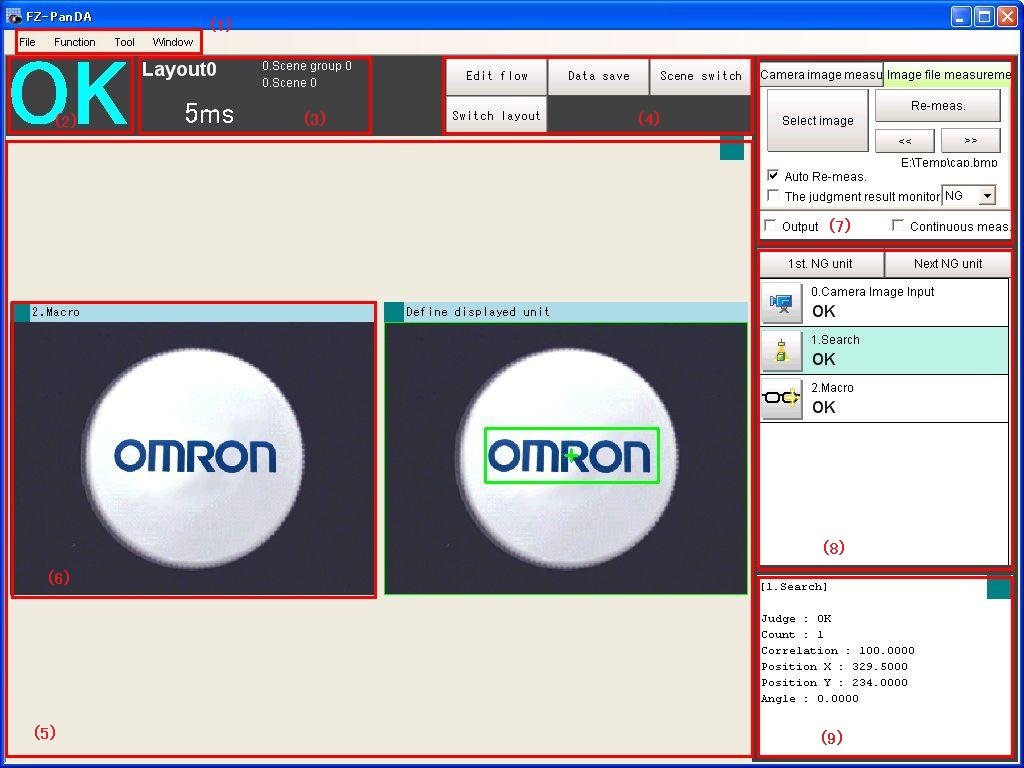

Initial screen layout

After startup of FJ software, this default screen layout is shown.

(1)Menu bar

Select operations regarding screen layout can be launched from the menu bar.

And other operations can be launched as well.

(2)Judge Window

Display Total judgement(OK/NG).

(3)Information Window

Display system information.

(a) Information of current screen layout

(b) Information of current scene group and scene

(4)Tool Window

Commonly-used functions appear in the toolbar.

Edit Flow

The Edit Flow window is displayed. Addition and deletion of processing units and switching of the processing sequence is performed in the Edit Flow window.

Data Save

Setting data is saved into the internal flash memory in the controller. Make sure to save when settings have been modified.

Scene Switch

To switch a scene group or scene.

Change Layout

Switch screen layout.

(5)Image Container Window

The window in which Image Windows deploy.

(6)Image Window

Display measured images.

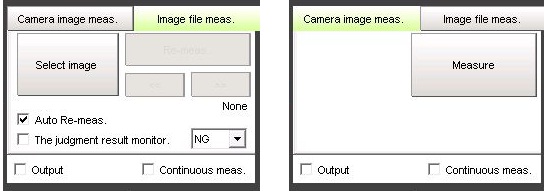

(7)Measurement Window

This is for inputting images from image file or camera, and operate test measurement.

(8)Flow Window

Show measurement flow, and the judge result of each processing units.

(9)Text Window

The detailed measurement results of selected processing unit is shown by text.
