Screen transition

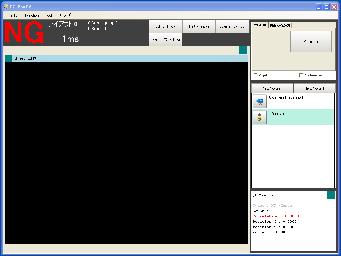

Typical screen transition is shown as below.Main Screen (Layout 0) On initial status, operations on Adjustment mode of FZ3 series are assigned. |
 |

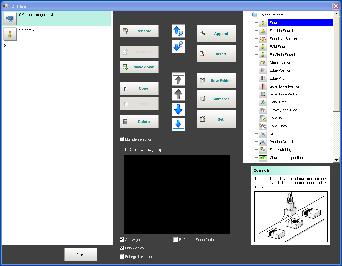

Flow edit window Same as FZ3 series Flow edit window. |
 |
|
|

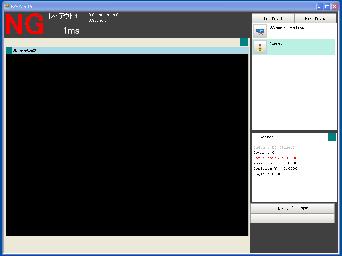

Main Screen (Layout 1) On initial status, operations on RUN mode of FZ3 series are assigned. |

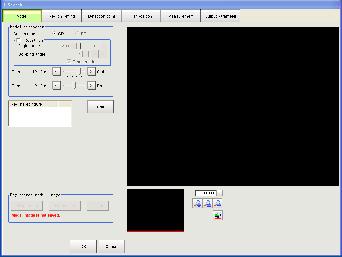

Unit setting window Same as FZ3 unit setting window. |
|
|
||
| The layouts of main screen can be defined up to 8 types. |
